NANO TWO WIRELESS

SKU: NANO-TWO-GM

This 14.4V battery has a capacity of 98Wh and a working current up to 10 Amps. It features two D-Tap In-/Output, USB-C In- & Output, USB-A Output and wireless charging Output.

Description

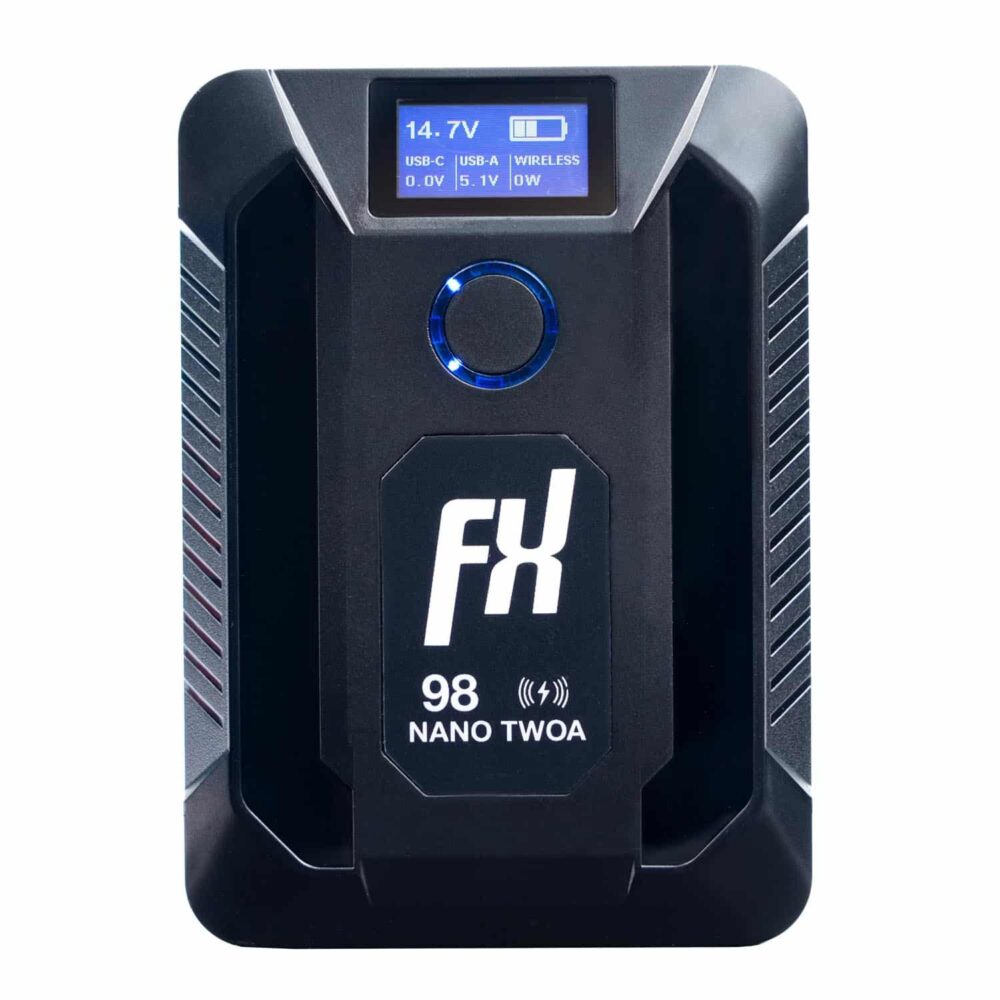

This 14.4V battery is suited for small equipment or as a power bank for your phone. Its small size is perfect for gimbal operated equipment or smaller camera rigs. The USB-C Output is strong enough to even charge your Apple MacBook or any other USB-C powered laptops/devices. A big feature is also, that you don’t need a dedicated D-Tap or V-Mount charger. You are able to charge these batteries over USB-C very quickly. The sockets are protected from dust with a rubber cap.LCD screen shows battery information and 4-levels LED indicators show battery’s power.

The new design features a built-in wireless charger. So you can easily charge up your phone on the go. Wireless charging has a maximum output of 15W.

All our batteries have a built-in protection circuit, that protects it from over-current, over-charge, over-discharge and over-heat. It can be used in a wide range of environmental temperatures from -20°C up to 55°C.

For suitable equipment calculations visit our support webpage – you will find a comprehensive article about how to calculate the right capacity and how long this battery will last based on an example situation.

Additional information

Voltage

14.4V

Capacity

6.8Ah / 98Wh

Load

10A (max.)

USB-A Output

5V/2.4A, 9V/2A, 12V/1.5A

USB-C In- & Output

5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max.)

D-Tap In- & Output

Yes (2x)

Wireless Charging Output

15W max.

Working Temperature

-20°C to 55°C

Dimensions

103(L)mm×74(W)mm×59(H)mm

Weight

540g
